Marine Rubber Fender Low Maintenance Easy To Clean Excellent Rebound
Description

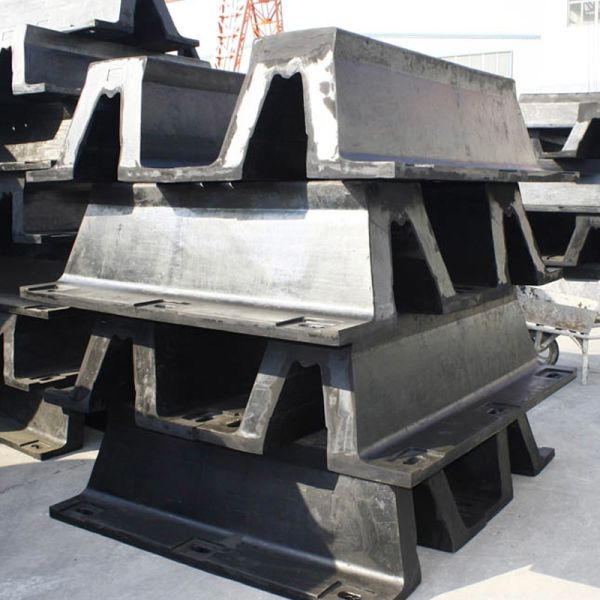

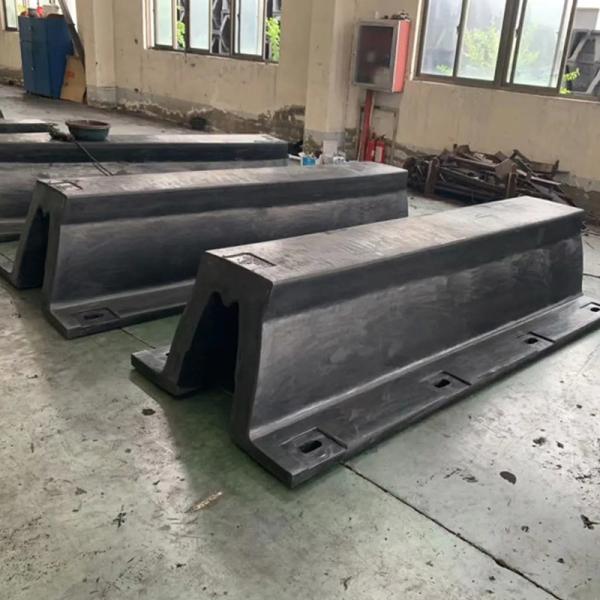

V Type Fenders are marine rubber buffers designed with a V-shaped cross-section to provide optimal energy absorption during vessel berthing. Constructed from high-grade elastomers (e.g., SBR, EPDM, or natural rubber), they excel in low-reaction-force performance, making them ideal for ports handling small to medium-sized ships. Their symmetrical design ensures uniform load distribution, reducing hull damage and dock stress. These fenders are modular, allowing customization in length via bolted connections, and are resistant to UV rays, saltwater, and abrasion. Common applications include ferry terminals, marinas, and inland ports, where their cost-effectiveness and ease of installation outperform pneumatic or cylindrical alternatives. Compliance with PIANC 2002 standards guarantees reliability under cyclic loading.
Specifications
| Product Name | V Type Fender |
| Material | High Performance Natural Rubber |
| Standard | HGT2866-2016, PIANC2002 |
| Shape | V Type |
| Feature | Easy Replacement Firm for Installation |
| Part | Dock Bumper |
| Usage | Dock Port Wharf Boat Ship |
| Surface | Matte/Smooth |
| Packing | Pallet or Wooden Case |
| Keywords | Arch Rubber Fender/V Rubber Fender |
| Model | A | D | E | F | H | K | M | R x Q | Lmax |
| V Type | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] |
| HM-VTF150 | 50 | 240 | 326 | 98 | 150 | 16 - 20 | 108 | 20 × 40 | 3000 |
| HM-VTF200 | 50 | 320 | 422 | 130 | 200 | 18 - 25 | 142 | 25 × 50 | 3000 |
| HM-VTF250 | 62.5 | 400 | 500 | 163 | 250 | 20 - 30 | 164 | 28 × 56 | 3500 |
| HM-VTF300 | 75 | 480 | 595 | 195 | 300 | 25 - 32 | 194 | 28 × 56 | 3500 |
| HM-VTF400 | 100 | 640 | 808 | 260 | 400 | 25 - 32 | 266 | 35 × 70 | 3500 |
| HM-VTF500 | 125 | 800 | 981 | 325 | 500 | 25 - 32 | 318 | 42 × 84 | 3500 |
| HM-VTF600 | 150 | 960 | 1160 | 390 | 600 | 28 - 40 | 373 | 48 × 96 | 3000 |
| HM-VTF800 | 200 | 1300 | 1550 | 520 | 800 | 41 - 50 | 499 | 54 × 108 | 3000 |
| HM-VTF1000 | 250 | 1550 | 1850 | 650 | 1000 | 50 - 62 | 580 | 54 × 108 | 3000 |
| *Note: Other sizes can be customized according to the requirements. |
Features
Corrosion Resistant Construction
Fully non-metallic design eliminates rust problems common in steel-reinforced fenders.
Temperature Resilience
Specialized compounds maintain flexibility from -50°C to +80°C (arctic and tropical grades available).
Modular System
Standardized sections (typically 500-2000mm lengths) allow customized configurations and easy damaged segment replacement.
Lightweight Design
Hollow V-structure reduces weight by 30-40% compared to solid rubber fenders of equivalent capacity.
Applications
● Shipyards
● Offshore Platforms
● Floating Docks
● Quay Walls
● Breakwater Structures
Advantages
Complete Product Range
Full spectrum of V-Type Fenders from small marina sizes to heavy-duty port configurations.
Value Added Services
Optional features including wear indicators, special color coding, and custom markings available.
Proven Performance Track Record
Thousands of successful installations worldwide across diverse marine applications.
Continuous R D Investment
Ongoing product improvement program focused on enhancing durability and performance.
FAQ
1. Q: How do you ensure consistent rubber quality?
A: We source premium raw materials and maintain strict compound formulations with batch testing.
2. Q: What documentation accompanies your fenders?
A: Each shipment includes material certificates, test reports, installation manuals, and warranty information.
3. Q: Are your production processes environmentally friendly?
A: Yes, we utilize energy-efficient manufacturing and recyclable materials with low VOC emissions.
4. Q: How do you calculate the required fender size for a specific berth?
A: Our engineers consider vessel size, approach velocity, tidal range, and berth structure to recommend optimal fender specifications.
